Soil Triaxial Cells
GCTS offers a variety of soil triaxial cells to meet any need. Standard cells have a pressure rating of 1, 2, or 3.5 MPa and have a maximum specimen size of 70, 100, 150, or 300 mm. Double-walled cells are also available for unsaturated and partially-saturated soil testing.All cells are constructed of stainless steel with a see-through acrylic external cell wall. After a specimen is loaded for testing, the external cell wall is lowered over the cell and fastened into place, resulting in minimum disturbances to the specimen. All the standard triaxial cells can accommodate smaller diameter specimens using optional platens. These triaxial cells accept specimens with a length of approximately 2.5 times the diameter. A stainless steel, extra-precision ball bearing guides the loading shaft. Both swivel loading buttons and rigid threaded connectors are provided with these cells. The swivel buttons allow the top cap to rotate during loading. The threaded adaptor is used for a rigid connection, which forces the axial deformation to be uniform. Stress reversal is easily applied with this adaptor. Up to eight feed-through ports to connect internal instrumentation can be added as an option.
GCTS also offers a cell designed for unsaturated soil testing with two walls to prevent differential pressure changes for the inner wall while changing the confining pressure. This eliminates volume change errors due to cell expansion as typically associated with single cell units. This also limits the amount of disturbance caused in the specimen, as the outer cell wall is lowered around the specimen after it is prepared. GCTS also offers a volume change device to be used with the double-walled cell to measure the volume change during unsaturated triaxial tests.

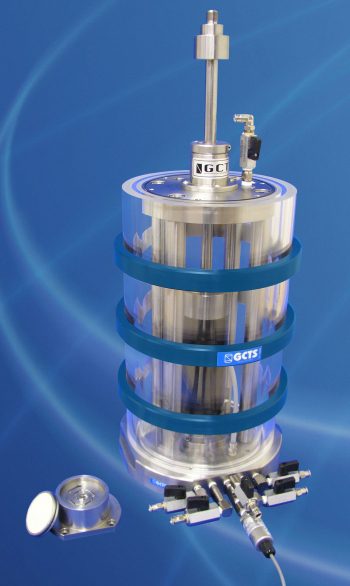

TRX-100
HIGHLIGHTS
- 1,000 kPa (150 psi) capacity
- 70 mm maximum specimen diameter
- Stainless steel construction
- External cell wall with internal tie rods
- Top and bottom drainage
- Stiff, low-friction loading piston and graphite seal
- External or internal load cells and LVDTs
- Optional cell with 2,000 kPa pressure capacity available
TRX-200
HIGHLIGHTS
- 1,000 kPa (150 psi) capacity
- 100 mm maximum specimen diameter
- Stainless steel construction
- External cell wall with internal tie rods
- Top and bottom drainage
- Stiff, low-friction loading piston and graphite seal
- External or internal load cells and LVDTs
- Optional cell with 2,000 kPa pressure capacity available
TRX-300
HIGHLIGHTS
- 1,000 kPa (150 psi) capacity
- 150 mm maximum specimen diameter
- Stainless steel construction
- External cell wall with internal tie rods
- Top and bottom drainage
- Stiff, low-friction loading piston and graphite seal
- External or internal load cells and LVDTs
- Optional cell with 2,000 kPa pressure capacity available

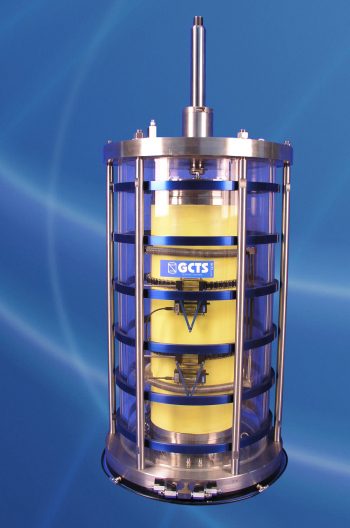

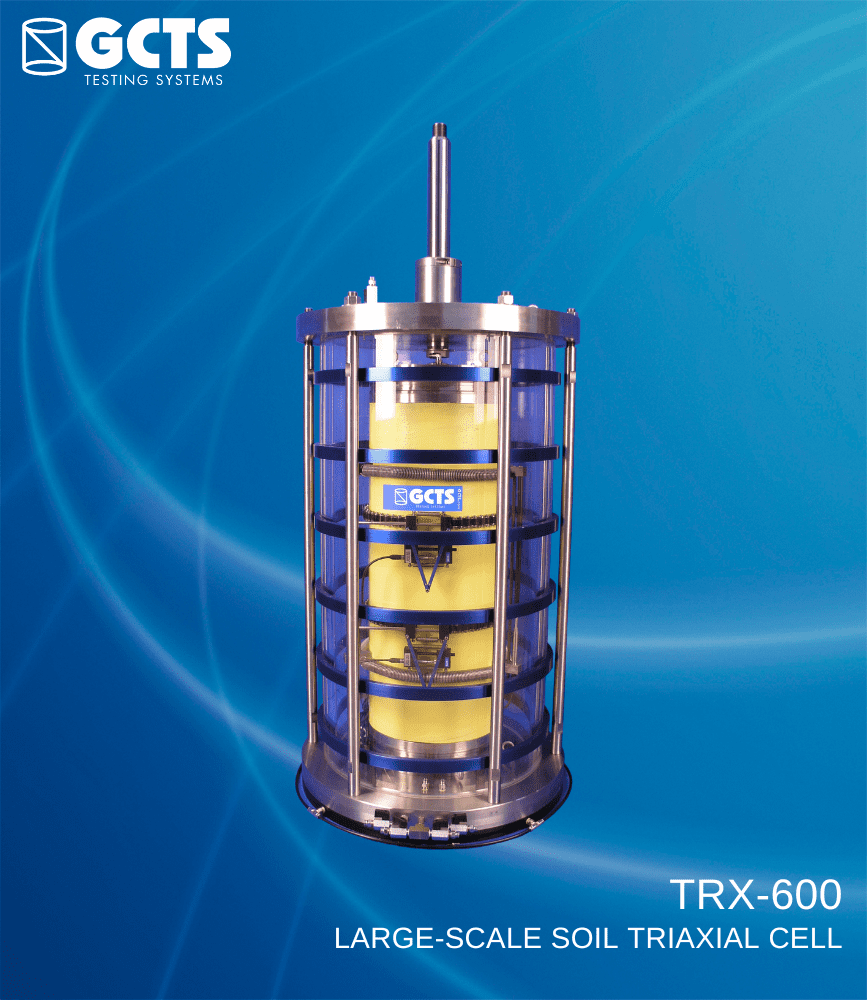

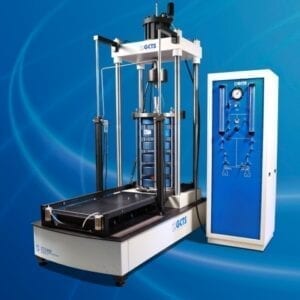

TRX-600
- Cells available with up to 3,500 kPa (500 psi) pressure capacity
- Accepts specimen with a 300 mm diameter and up to 700 mm height
- Stainless steel construction
- Light-weight reinforced acrylic cell wall
- Top and bottom specimen drainage
- Low-friction graphite seal
- Hardened stainless steel loading piston and extra-precision ball bushing guide
- Rigid loading connection for stress reversal
- External or internal load cells and LVDTs

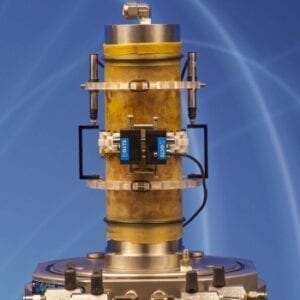

- Feed-through connectors for GCTS axial and radial strain measurement devices and other transducers.

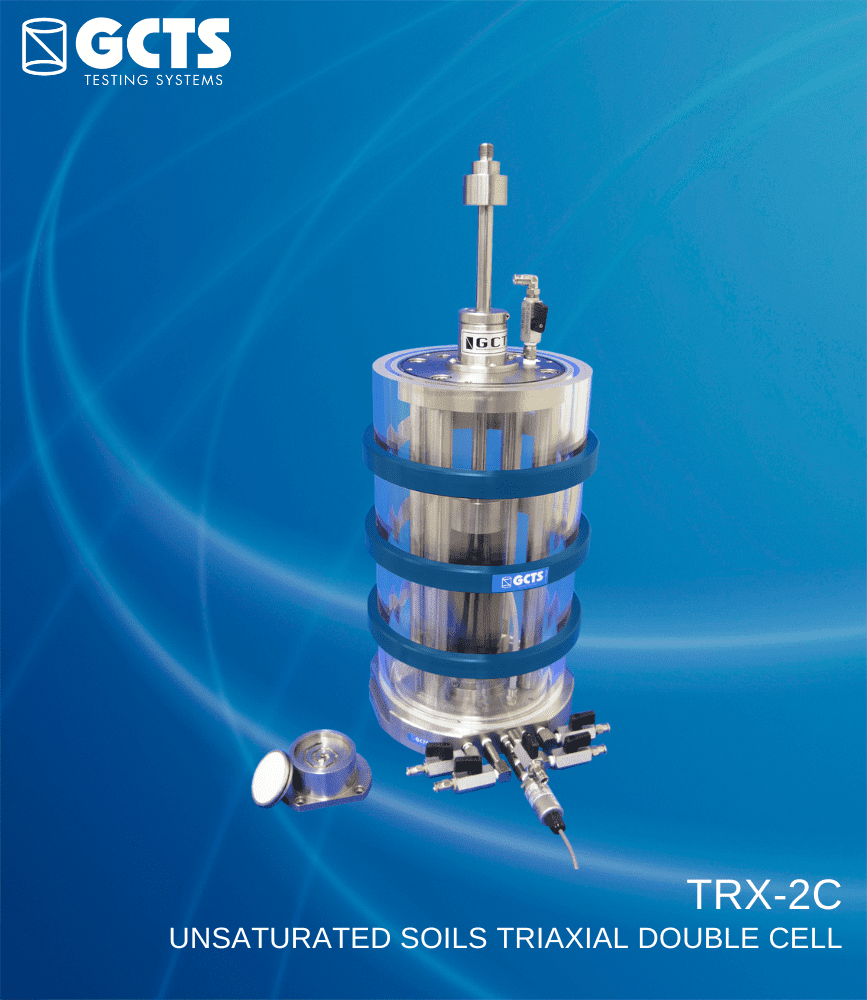

TRX-2C
HIGHLIGHTS
- 2,000 kPa (300 psi) capacity
- 70, 100, or 150 mm maximum specimen diameter
- Stainless steel construction
- Double external cell wall (internal tie rods)
- Top pore-air, bottom pore-water, bottom flushing, and independent internal & external cell pressure/drainage ports
- Sealed electrical feed-through connectors for internal instrumentation including deformation device, ultrasonic velocity, mid-plane pore pressure, and other sensors
- Specimen platens with easily interchangeable HAEV ceramic discs
- Stiff, low-friction loading piston & graphite seal
- High-ductility metallic reinforcement rings
