Soil Pressure/Volume Control

The PCP-200 is a tabletop, manually-operated pneumatic panel that controls confining, pore, and back pressure in soil specimens, compliant with ASTM D3999-91 and D5311-92. It has a 1,000 kPa capacity and can be upgraded to computer control.

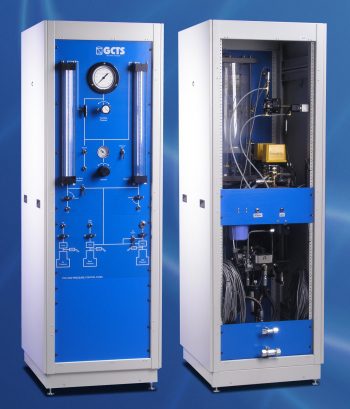

The PCP-2000 features a pressure panel, large cabinet, and two or three stainless-steel pressure-volume intensifiers for controlling confining, pore water, or pore air pressure. Intensifiers come in 1, 2, or 3.5 MPa capacities with 300, 800, or 2,000 cc volumes and can be controlled hydraulically or pneumatically. They support dynamic pressure application up to 10 Hz and allow for pre-programmed stress-strain paths.

The ePVC Series Standalone Pressure/Volume Controllers independently manage hydraulic pressure or flow with standard 100‐240 VAC power, requiring no hydraulic power. These controllers offer closed-loop servo-control, large volume capacity, and precise measurements to avoid errors from gear backlash. The ePVC includes PC and mobile interface programs (iOS, Android, Windows) and can link multiple units via CATS software for synchronized control in various tests. Models are upgradable for continuous flow with no pressure spikes.

PCP-200

HIGHLIGHTS

Provides complete pressure control for a GCTS Triaxial system

1,000 kPa maximum pressure

150 cc volume capacity with a resolution of 0.01 cc

Manual knobs to control confining pressure, pore pressure, and back pressure

Single pressure gauge to measure accurate pressure differences with 2.5 kPa (0.5 psi) resolution

Includes Venturi vacuum pump

Graded water level sight tubes for electronic and manual readings

Mounting platform for pressure transducers and necessary plumbing

Upgrades available for computer-control of the confining pressure, pore pressure, and back pressure

PCP-2000

HIGHLIGHTS

1, 2, and 3.5 MPa pressure capacities available

300, 800, and 2,000 cc capacities available

0.1 kPa pressure & 0.005 cc volume resolution

Static or pulsating pressure application at up to 10 Hz

Flow velocities from 0 to 2,000 cc/min

Stiff, stainless-steel construction for very low compliance

Electro-actuated ball valves for automatic operation

Pressure-volume intensifiers for confining, pore water, and pore air pressures available

Intensifiers mounted inside steel cabinets complete with calibration gauge, water reservoir, vacuum pump, & necessary plumbing

“Turn-key” pressure panel with de-airing tank, vacuum pump, precision gauge, and more

Pneumatic and hydraulic intensifiers available

ePVC

HIGHLIGHTS

Standalone Pressure / Volume Intensifier with Controller

Controlled by on-board keypad, computer, or mobile device

1 to 210 MPa standard pressure range models

Ultra high pressure 1 GPa (150,000 psi) model available

As low as 0.05 kPa resolution

Up to 823 cc volume stroke

As low as 0.0002 cc resolution

Up to 1,236 cc/min. flow rate @ 5% rated pressure

Closed-loop digital servo control of pressure or flow (volume) with “bumpless” transfer

TCP/IP Communications

Optional models available for corrosive fluids

Continuous flow models with no recharge pauses available

Power: 100–240 VAC, 50/60 Hz @ 1 KVA

Continuous Flow

HIGHLIGHTS

Pressure Range Options: Available in 3.5 to 140 MPa variants.

Fluid Compatibility: Options for water, oil, and corrosive fluids, with wetted parts made of stainless steel, aluminum, or other metal alloys.

Programmability: Easily programmable via Windows computers and mobile devices, with manual operation via built-in keypad.

Flow Rate: Max. flow rates ranging from 20 cc/min to 150 cc/min depending on the pressure range and fluid type.

Integrated Control: Each unit includes an integrated data acquisition and control unit for precise pressure management.

Power Supply: Compatible with 100-240 VAC, 50/60 Hz @ 2 KVA power supply.

Fluid Reservoir: Select models include a 5-gallon (19-liter) fluid reservoir.

PCP-200

PCP-2000

ePVC

Continuous Flow

Are you interested in our Soil Pressure/Volume Control solution? Contact us today!
