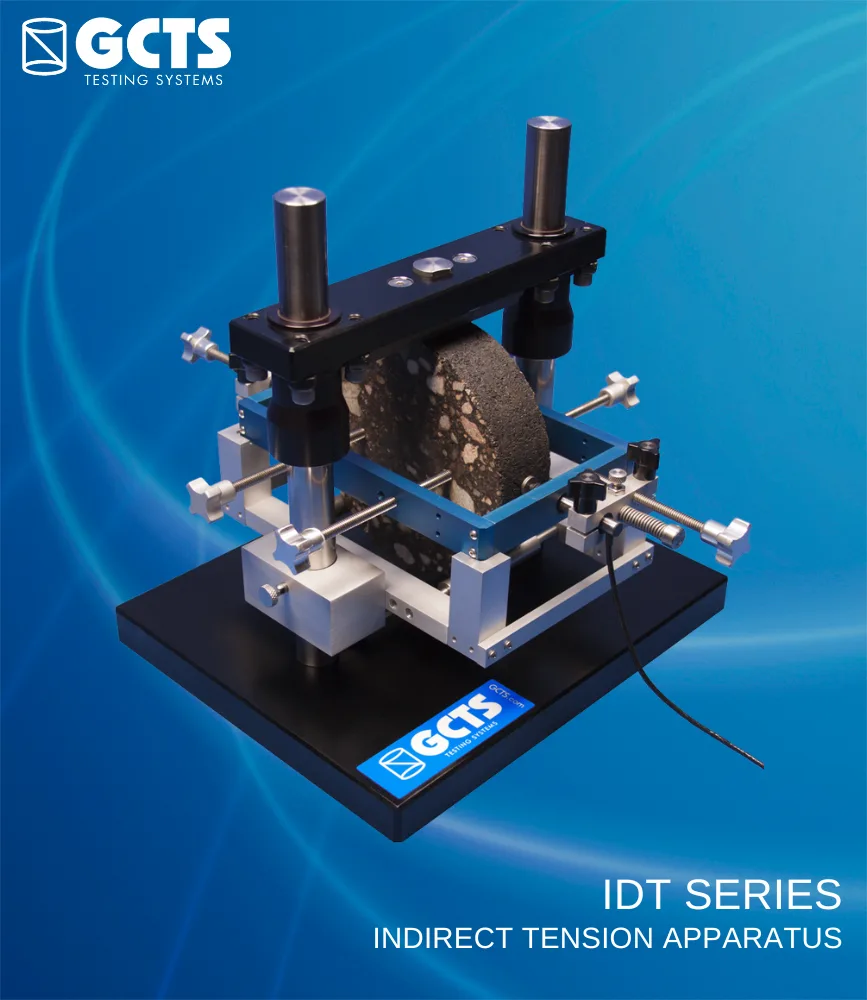

Indirect Tension & Creep Compliance
The GCTS IDT-FRM Indirect Tension Module can be used with any GCTS loading frame to easily perform indirect tension or creep compliance tests on Hot Mix Asphalt specimens. The easy-to-use centering mechanism ensures that the specimen is precisely centered for each test. Both frame-mounted and specimen-mounted deformation sensors can be used, ensuring that this module meets the newest ASTM, AASHTO, and EN testing standards.
IDT-FRM
HIGHLIGHTS
- Frame to perform indirect tension and creep compliance tests
- 100 mm (4 in.) to 150 mm (6 in.) diameter specimens
- Up to 90 mm (3.5 in.) specimen thickness
- Meets all current ASTM, AASHTO, and EN testing standards
- Specimen-mounted or frame-mounted measurement transducers
- Easy specimen mounting mechanism
- Compatible with any GCTS loading frame
- Functional in all temperature conditions provided by GCTS Environmental Chambers
Relevant Standards
AASHTO T322 Standard Method of Test for Determining the Creep Compliance and Strength of Hot-Mix Asphalt (HMA) Using the Indirect Tensile Test Device
