Corrosive Pore Fluid
The GCTS HPVS-400 Pore Fluid Transfer Cell, when used with the HPVC pressure intensifiers, are ideal for the control of the pore pressure in triaxial tests, head pressure in permeability tests, or fluid pressure in hydro-fracture tests when corrosive fluids, such as brine, are used as the pore fluid. The transfer cell has a 400 cc volume capacity with absolute pressure of 140 MPa and differential pressure across the rolling diaphragm of up to 1,000 kPa.
GCTS also offers ePVC electromechanical pressure/volume controllers designed specifically for corrosive fluids.

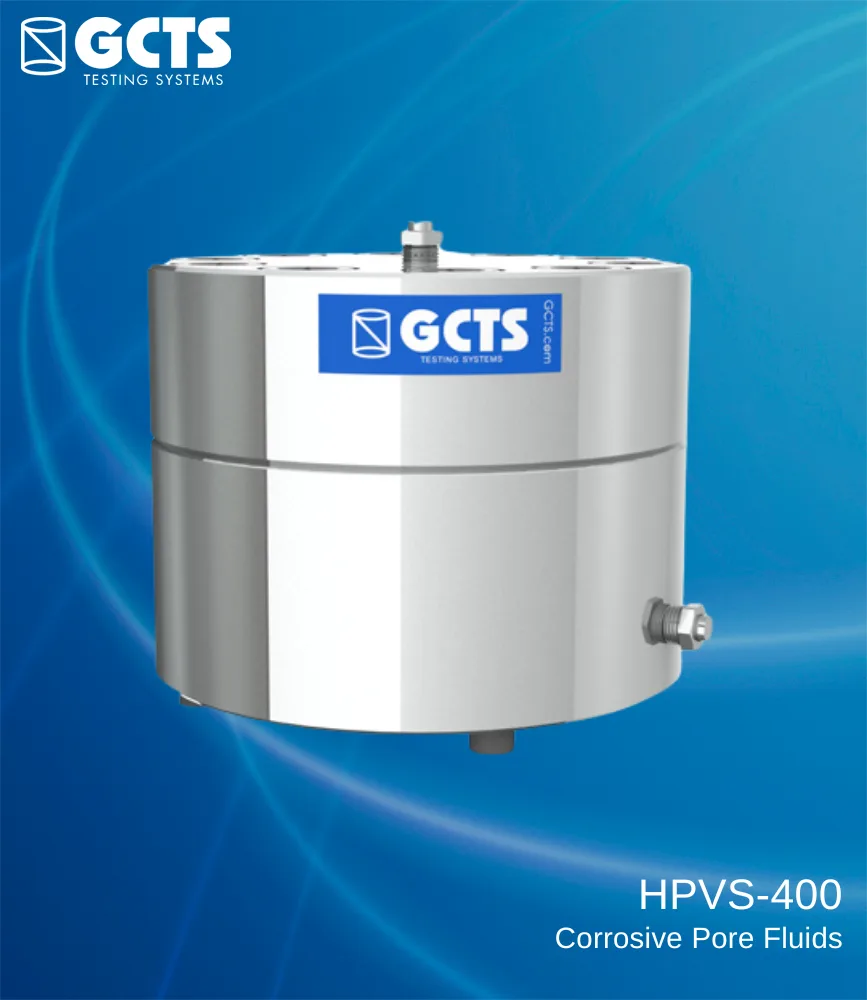

HPVS-400
HIGHLIGHTS
- 140 MPa (20,000 psi) absolute pressure range
- 1,000 kPa (150 psi) differential pressure capacity
- 400 cc fluid reservoir with pressure/vent port for easy filling and draining cell and intensifier
- For use with corrosive fluids (i.e. brine) in permeability and triaxial testing of rock specimens
- Compatible with GCTS HPVC pressure intensifiers
- Can be used as a volume change measurement device for triaxial and permeability testing
- Optional high pressure and large volume stroke reservoirs also available
