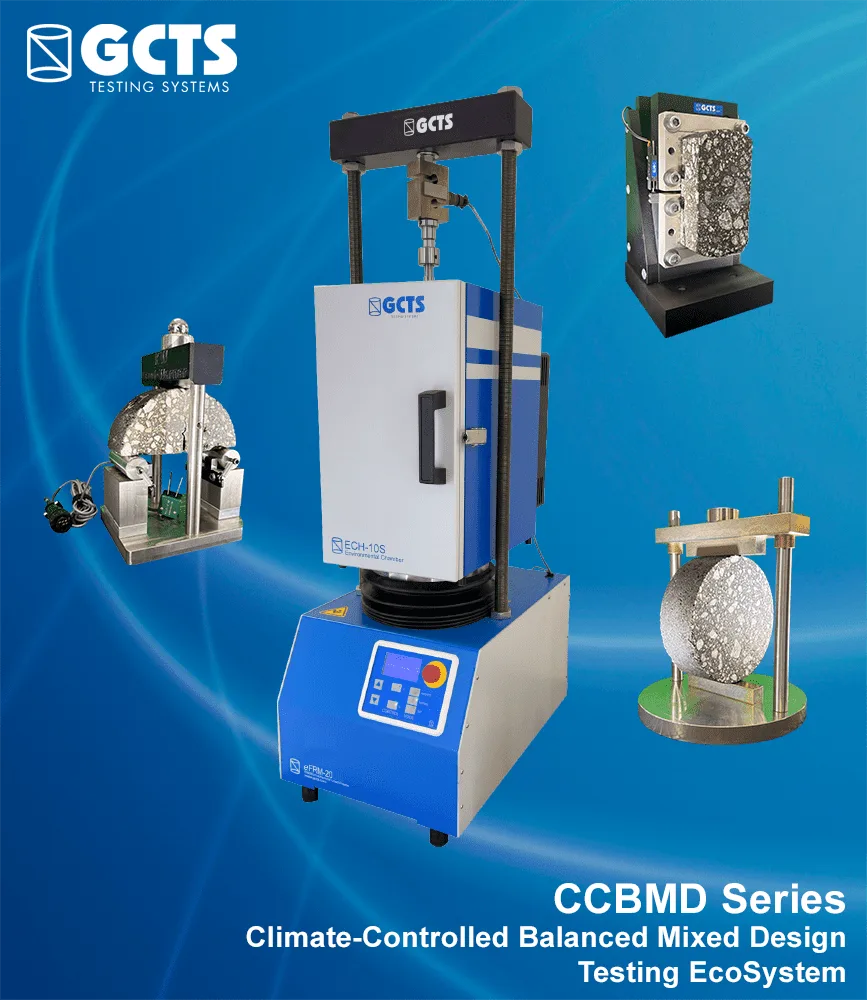

Asphalt Mix Tester
The GCTS Asphalt Mix Tester is a high-performance system designed for precise, automated testing of balanced asphalt mix designs. With a load capacity of 20 kN, 100 mm stroke, and a highly accurate ±20 kN load cell, it ensures reliable results for various ASTM, AASHTO, and EN standards. Its closed-loop feedback system provides exceptional control using ANY sensor inputs, delivering consistent, accurate data even in extended tests. The advanced 24-bit resolution and 1,000 Hz simultaneous sampling rate offer superior data accuracy compared to lower-resolution systems, ensuring precise test outcomes.
This tester also integrates seamlessly with the gTest app, enabling remote monitoring, control, and report generation from any location—enhancing productivity and reducing downtime. Its versatility makes it suitable for research labs and industrial use, supporting multiple asphalt testing methods such as Marshall Stability, IDT Strength, and Semi-Circular Bend (SCB) testing. With superior control, flexibility, and ease of use, the GCTS Asphalt Mix Tester is a reliable, advanced solution for modern asphalt testing needs.
Technical Specifications
Mechanical Specifications
- Load Capacity – 20 kN
- Stroke – 100 mm (4 inch)
- Load Cell – SR-LC-SSM-20k Load Cell ±20 kN range & 0.05% precision
- Clearance
- Vertical – 595 mm
- Horizontal – 279 mm
Electrical Specifications
- Resolution – 24-bit
- 8 Analog Inputs
- Four differential inputs
- Four DC Single ended inputs
- Sampling Rate – 1,000 Hz simultaneous samples (1 MHz oversampling)
- Power Requirements – 110-240 VAC/50-60 Hz
Relevant Standards
SCB (Semi-Circular Bending)
- EN 12697-44:2019 Bituminous mixtures. Test methods – Crack propagation by semi-circular bending test
- AASHTO TP 105-13 Determining the Fracture Energy of Asphalt Mixtures Using the Semicircular Bend Geometry
- ASTM D8044-16 Standard Test Method for Evaluation of Asphalt Mixture Cracking Resistance using the Semi-Circular Bend Test (SCB) at Intermediate Temperatures
- AASHTO TP 124-18 Method of Test for Determining the Fracture Potential of Asphalt Mixtures Using the Flexibility Index Test (FIT)
IDT (Indirect Tension – Full Circular Sample)
- ASTM D8225-19 Standard Test Method for Determination of Cracking Tolerance Index of Asphalt Mixture Using the Indirect Tensile Cracking Test at Intermediate Temperature
- ASTM D6931 Standard Test Method for Indirect Tensile (IDT) Strength of Asphalt Mixtures
- AASHTO T322 Standard Method of Test for Determining the Creep Compliance and Strength of Hot Mix Asphalt (HMA) Using the Indirect Tensile Test Device
- BS EN 12697-23 Bituminous mixtures. Test methods – Determination of the indirect tensile strength of bituminous specimens
- AASHTO T283 Resistance of CompactedAsphalt Mixtures toMoisture-Induced Damage
Ideal-RT Test Fixture
- ASTM D8360 Standard Test Method for Determination of Rutting Tolerance Index of Asphalt Mixture Using the Ideal Rutting Test
Texas Overlay
- Tex-248-F Critical fracture energy and crack progression rate are performance indices that characterize the bituminous mixtures resistance to cracking. This test method determines the susceptibility of bituminous mixtures to fatigue or reflective cracking
Asphalt Tack Coat/Interlayer Shear Strength Fixture
- AASHTO TP 114-18 Standard Method of Test for Determining the Interlayer Shear Strength (ISS) of Asphalt Pavement Layers
Asphalt Disk-Shaped Compact Tension (DCT) Fixture
- ASTM D7313 Standard Test Method for Determining Fracture Energy of Asphalt Mixtures Using the Disk-Shaped Compact Tension Geometry
- AASHTO TP 105 Standard Method of Test for Determining the Fracture Energy of Asphalt Mixtures Using the Semicircular Bend Geometry (SCB)
Marshall Fixture
- ASTM D6926 Standard Practice for Preparation of Asphalt Mixture Specimens Using Marshall Apparatus
- ASTM D6927 Standard Test Method for Marshall Stability and Flow of Asphalt Mixtures
- AASHTO T245 Resistance to Plastic Flow of Bituminous Mixtures Using Marshall Apparatus
- BS 598-107 Sampling and examination of bituminous mixtures for roads and other paved areas – Method of test for the determination of the composition of design surface course rolled asphalt
California Bearing Ratio (CBR)
- STM D1883 Standard Test Method for California Bearing Ratio (CBR) of Laboratory-Compacted Soils
specimens, soaking them, and then measuring their resistance to penetration1. - AASHTO T193 Standard Method of Test for The California Bearing Ratio
- BS 1377-9 Methods for test for soils for civil engineering purposes. In-situ tests
